2012年4月26日星期四

2012年4月11日星期三

Dim s(2), a(2) As Integer
Dim st(2), totalstr As String
Private Sub Command1_Click(Index As Integer)

If Index = 0 Then

s(Index) = s(Index) + 1
a(Index) = s(Index) Mod 2

Select Case a(Index)
Case 0

Shape1(2).FillColor = QBColor(10)
Label2.Caption = a(Index)
st(Index) = 0
Case 1
Shape1(2).FillColor = QBColor(12)
Label2.Caption = a(Index)
st(Index) = 1
End Select

ElseIf Index = 1 Then
s(Index) = s(Index) + 1
a(Index) = s(Index) Mod 2

Select Case a(Index)
Case 0

Shape1(1).FillColor = QBColor(10)
Label2.Caption = a(Index)
st(Index) = 0
Case 1
Shape1(1).FillColor = QBColor(12)
Label2.Caption = a(Index)
st(Index) = 1
End Select

ElseIf Index = 2 Then
s(Index) = s(Index) + 1
a(Index) = s(Index) Mod 2

Select Case a(Index)
Case 0

Shape1(0).FillColor = QBColor(10)
Label2.Caption = a(Index)
st(Index) = 0
Case 1
Shape1(0).FillColor = QBColor(12)
Label2.Caption = a(Index)
st(Index) = 1
End Select

End If
totalstr = st(0) + st(1) + st(2)
Label1.Caption = totalstr
End Sub

2012年4月4日星期三

2012/04/05

VB TCP 多人連線

Server端
IP : 192.168.15.46
Client端
IP : 192.168.15.47、192.168.15.48

Server端

截圖

winsock設定

程式碼

Option Explicit

Private Sub cmdSend_Click()

Dim i As Long
For i = 1 To 2
Winsock1(i).SendData txtSend.Text
Next

End Sub

Private Sub Form_Load()
Winsock1(0).LocalPort = 7777
Winsock1(0).Listen 'Winsock1(0)負責監聽 Clien1=Winsock1(1) Clien2=Winsock1(2)
End Sub

Private Sub Winsock1_ConnectionRequest(Index As Integer, ByVal requestID As Long)

Dim i As Long
For i = 1 To 4
If Winsock1(i).State = sckClosed Then
Winsock1(i).Accept requestID
List1.AddItem "Local Port=" + Str(Winsock1(i).LocalPort) + " RemotePort = " + Str(Winsock1(i).RemotePort)
Exit For
End If
Next

cmdSend.Enabled = True
End Sub

Private Sub Winsock1_DataArrival(Index As Integer, ByVal bytesTotal As Long)

Dim strData As String
Winsock1(Index).GetData strData, vbString
txtReceived.Text = strData

If Index = 1 Then
Winsock1(2).SendData txtReceived.Text '接收到來至Clien1的資料送到Clien2
Else
Winsock1(1).SendData txtReceived.Text '接收到來至Clien2的資料送到Clien1
End If

If strData = "close" Then
Winsock1(1).Close
cmdSend.Enabled = False
Winsock1(0).Listen
End If

End Sub

Client端

截圖

IP與port設定

程式碼

Private Sub cmdConnect_Click()
Winsock1.LocalPort = 0 '以便自動產生Local Port
Winsock1.Connect "192.168.15.46" '設定改成您 Server 電腦的IP 號碼
End Sub

Private Sub cmdExit_Click()
Winsock1.SendData "close"
DoEvents
Winsock1.Close
Winsock1.LocalPort = 0
End Sub

Private Sub cmdSend_Click()
Winsock1.SendData txtOutput.Text
DoEvents
End Sub

Private Sub Form_Load()
Winsock1.RemotePort = 7777 '設定與Server端做Listen的Port相同
End Sub

Private Sub Form_Unload(Cancel As Integer)
If Winsock1.State <> sckClosed Then
cmdExit_Click
End If
End Sub

Private Sub Winsock1_Connect()
If Winsock1.State = sckConnected Then
lstInput.AddItem "Connected! LocalPort =" & Winsock1.LocalPort _
& " RemptePort = " & Winsock1.RemotePort
End If
End Sub

Private Sub Winsock1_DataArrival(ByVal bytesTotal As Long)
Dim mydata As String
Winsock1.GetData mydata, vbString
lstInput.AddItem mydata
End Sub

Private Sub Winsock1_Error(ByVal Number As Integer, Description As String, ByVal Scode As Long, ByVal Source As String, ByVal HelpFile As String, ByVal HelpContext As Long, CancelDisplay As Boolean)
lstInput.AddItem Description
End Sub

2012年3月28日星期三

2012/03/29

JAVA TCP連線

Server端

畫面截圖

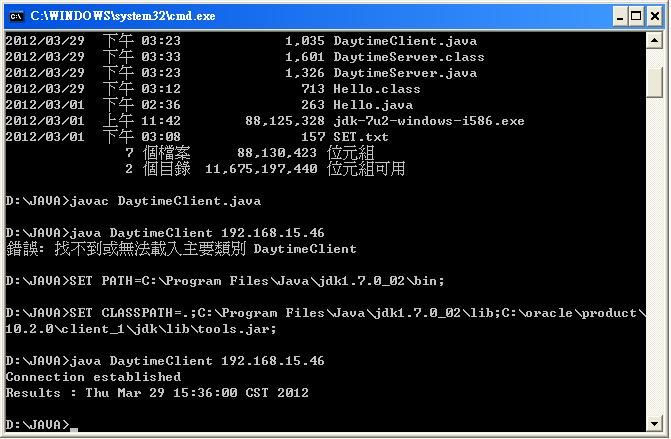

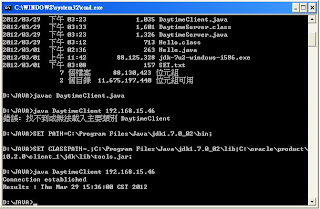

Client端

畫面截圖

VB JAVA連線時 VB畫面

VB TCP連線

sckClosed = 0 --缺省值，關閉。
SckOpen = 1 --打開。
SckListening = 2 --偵聽
sckConnectionPending = 3 --連結掛起
sckResolvingHost = 4 --識別主機。
sckHostResolved = 5 --已識別主機
sckConnecting = 6 --正在連結。
sckConnected = 7 --已連結。
sckClosing = 8 --同級人員正在關閉連結。
sckError = 9 --錯誤

TCP-Server

程式碼

Option Explicit

Private Sub cmdSend_Click()

Winsock1.SendData txtSend.Text
